1838MUX
Rock Breaking Attachment
  • Impact Output Power: 18kW
  • Drilling Diameter: Ø64-89mm

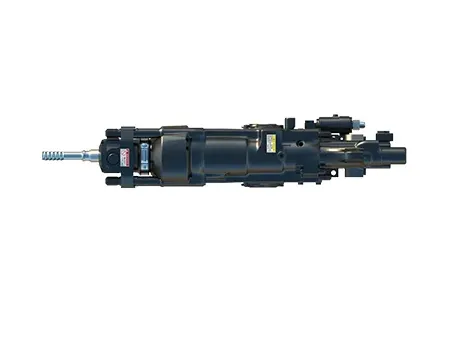

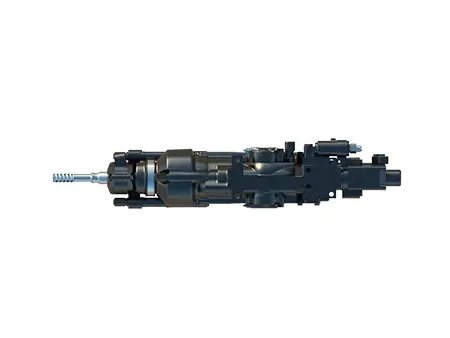

The 1838MUX hydraulic rock drill is designed with an efficient hydraulic double damping system that utilizes floating adapter technology to deliver high productivity and excellent drill steel economy. The hydraulic drifter is equipped with a powerful stepless variable and reversible rotation motor, ensuring high torque and superior speed control. Furthermore, productivity is enhanced and downtime is minimized through separate lubrication for the front head and driver, as well as pressurized, lubricated surfaces and side bolts.

Product Parameters
Max. Impact Output Power 18kW
Impact Frequency 60Hz
Max. Impact Pressure 220bar
Impact Oil Flow 75-92L/min
Motor Displacement 160cc 250cc
Max. Rotation Torque 1070Nm 1550Nm
Rotation Speed 0-215rpm 0-135rpm
Max. Rotation Pressure 210bar 200bar
Rotation Oil Flow 75L/min 75L/min
Drilling Diameter Range 64-89mm
Compatible Shank Adapters T38/T45
Operating Weight 225kg
Accessories

Shank

Piston

Shank bushing

Spline wear sleeve

Gear

Front guide sleeve
