Octagonal Tube Roll Forming Machine
Request a Quote
Formation of roller shutter tube in octagonal or round shape
The octagonal tube production line is primarily built for the manufacture of octagonal tubes or round tubes for roller shutter doors and outdoor shading systems. The roll forming machine has 20 forming stations, capable of producing octagonal tubes of different diameters, i.e. 40mm, 60mm and 70mm.

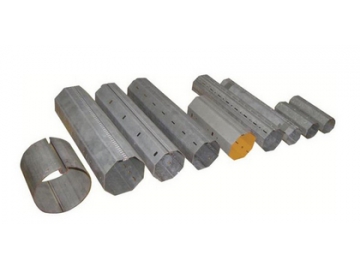

Samples of Finished Product
Components of Octagonal Tube Roll Forming Machine
- Uncoiler (2 tons)
- 25 ton punching machine

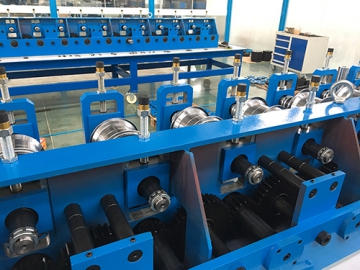

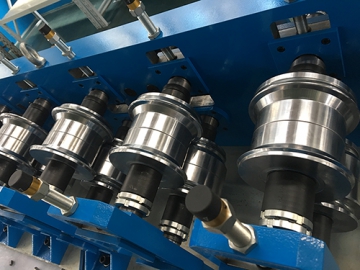

- Roll forming machine
- Fly saw cutting system with servo motor
- PLC automatic control system
- Cooling system
- Runout table
Specifications
- Coil thickness: 0.4-1.2mm
- Coil width (HZ-40):143mm
- Coil width (HZ-60): 210mm
- Coil width (HZ-70): 248mm
- Drive: gearbox with universal joint transmission system/gear transmission system
- Forming stations: 20
- Main motor power: 7.5kW
- Forming speed: 8-15m/min
- Finished tube diameter: 40mm, 60mm, 70mm
- Automatic uncoiler
- Feeding system
- Punching machine
- Roll forming machine
- Servo driven cutting system
- Runout table
Huazhong is committed to the innovation of roll forming machines and helping customers lower their costs and stay ahead in their competitive market.
