Automatic J-Box Potting Machine
Request a Quote
Used for automatic glue potting of PV junction box

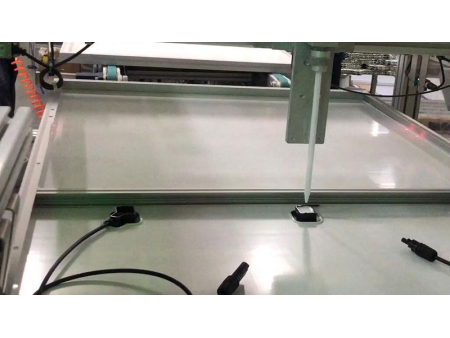

An automatic J-box potting machine is composed of conveying, positioning and potting systems. The potting machine is used for automatic glue potting of PV junction boxes. The servo motor and the potting head’s wide coverage area ensure that the J-box applicator can adapt to various junction box positions and the potting process is accurate and efficient. Moreover, 1-3 sets of potting heads can be customized to improve production efficiency as customers require.
To conclude, the potting machine is an indispensable piece of solar panel production equipment with high automation.
Technical Parameters
| Item | Parameters |
| Panel size | (1,680-2,650)*(992-1,500)mm |
| Cycle time | ≤20s |
| Panel positioning accuracy | ±1mm |
| Overall dimensions (L*W*H) | 3,600*2,000*1,560mm |
| Voltage | 220V |
| Power | 1kW |
| Air pressure | 0.5MPa |
| Weight | 350kg |
Features
- The overall structure is composed of conveying, positioning, and glue potting systems;
- The potting system uses servo motor for fast and accurate movement and positioning;
- As the potting head movement covers a big area, the head can adapt to various junction box positions;
- 1-3 sets of potting heads can be customized according to customer requirement.
