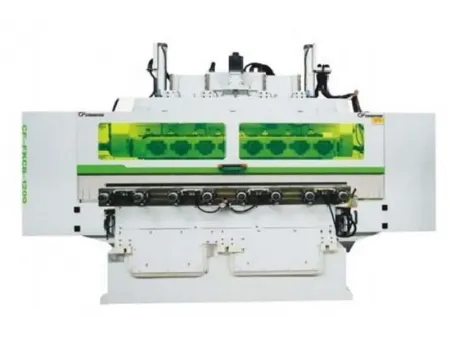

8-Head 5 Axis CNC Machining Center
//Woodworking Machinery
5 axis CNC working center with eight heads for simultaneous machining of multiple complex wood workpieces
- Max. machining length1200mm
- Ejector pin spacing350mm
- Machine dimensions (L×W×H)5500L×4000W×3000H mm
- Machine weightApprox. 7T

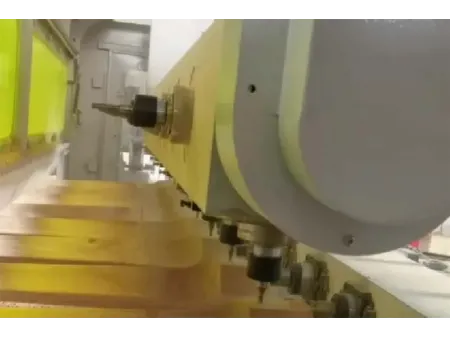

The 8-head 5 axis CNC machining center is designed for high-efficiency, multi-workpiece machining in advanced woodworking applications. Each head is supported by an ER32 collet chuck system with a rotating tool changer, accommodating four rows of tools with 360° positioning. This setup allows four operations to be completed in a single cycle, while the 8 head configuration enables synchronized processing of multiple parts at once, significantly boosting throughput and consistency in mass production environments.
This woodwork machining center is suitable for producing a wide range of solid wood furniture components as well as irregular edges and decorative profiles in panel furniture. It is commonly used to process window and door frames, sashes, stair handrails, stair treads, and other structural or ornamental wood parts, making it ideal for high-output manufacturing environments requiring flexibility and precision.
| Type | 8 heads | 12 heads |
| Max. machining length | 1200mm | |
| Ejector pin spacing | 350mm | |
| Motion travel | X-axis:590mm | X-axis:1900mm |
| Y-axis:1600mm | Y1-axis:1760mm | |
| Z-axis:500mm | Y2-axis:1760mm | |
| Z-axis:500mm | ||
| A-axis:0-360° | ||
| C-axis (turning/milling axis):continuous rotation | ||
| Numerical control system | Taiwan LNC | |
| Motorized spindle | 7.5kW×8pcs (high-speed double-head spindle) Tool collet:ER32 | |
| A/B axes | B-axis reducer:ultra precision worm gear reducer A-axis reducer:ultra precision RV reducer | |
| Servo controller | High-resolution absolute encoder | |
| High performance frequency converter | 11kW×2pcs | |
| Linear guide | Precision linear guide rail(Taiwan brand) | |
| Transmission | X-axis precision ball screw (Taiwan brand) Y-axis precision rack and pinion Z-axis precision ball screw (Taiwan brand) | X-axis precision ball screw (Taiwan brand) Y1/Y2-axis precision rack and pinion Z-axis precision ball screw (Taiwan brand) |
| Pneumatic components | AirTAC Taiwan | |
| Cable and drag chain | High speed and heavy load cable and drag chain | |
| Switch/relay | Schneider,France | |
| Machine dimensions (L×W×H) | 5500L×4000W×3000H mm | 6000L×4000W×3000H mm |
| Machine weight | Approx. 7T | Approx. 8T |
- The integrated C-axis allows for continuous rotation and angular positioning of the workpiece, ensuring flexibility when machining curved or cylindrical surfaces.
- Its five-axis control system enables a wide range of operations including turning, milling, circular carving, flat carving, routing, and drilling for irregular and complex shapes.

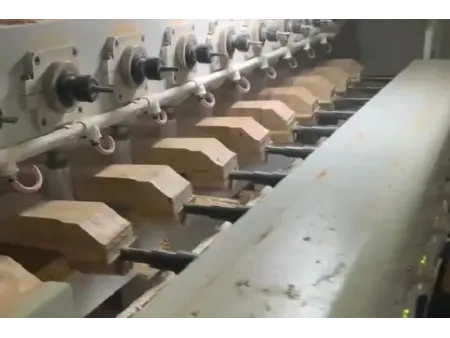

- It supports efficient production of turned and milled furniture components such as table legs, chair legs, stair parts, and central posts.
- Multiple tool types can be installed simultaneously, with an optimized layout that reduces tool change time and allows various tasks like turning and milling to be completed in one clamping cycle.

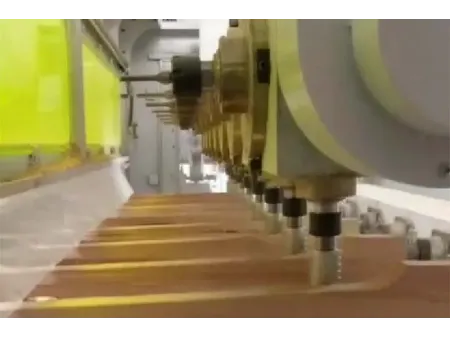

- All eight heads can operate in parallel, ensuring high-precision, high-speed, and highly reliable performance for demanding production requirements.
