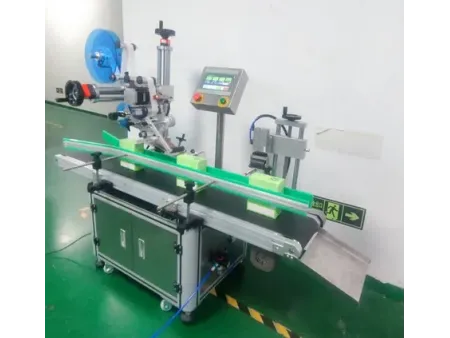

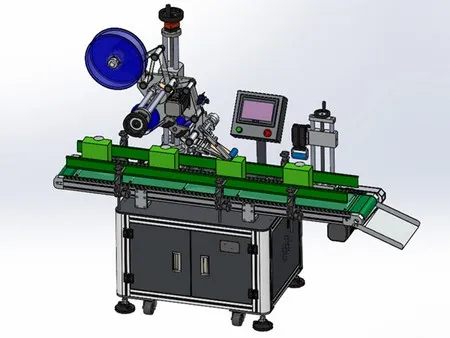

Corner Wrap Label Applicator
Request a Quote

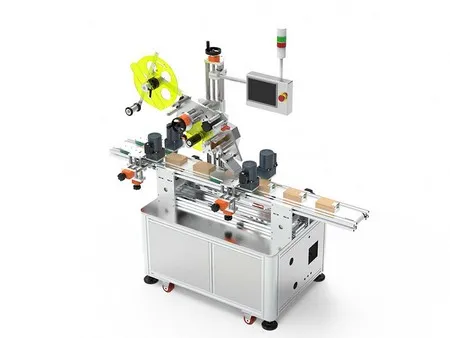

Tamper-evident labeler for one-sided / two-sided seal labeling of boxes
The corner wrap label applicator is designed for single or double-sided labeling on the corners of boxes, significantly enhancing production efficiency. It is suitable for self-adhesive labels and films and is widely used in the cosmetics, daily chemical, electronics, pharmaceutical, hardware, and plastic industries.

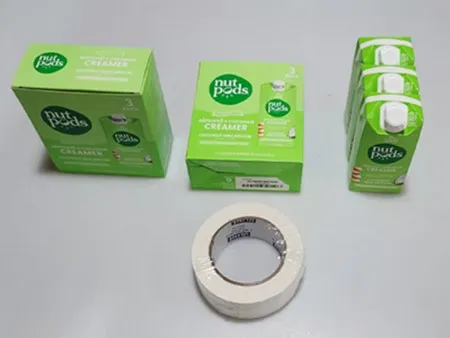

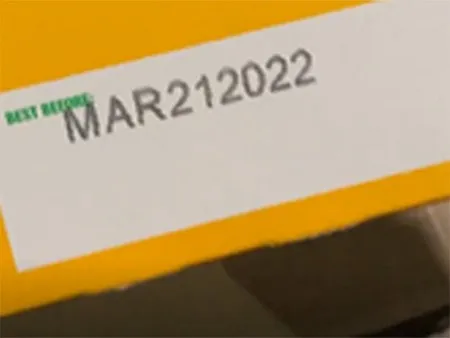

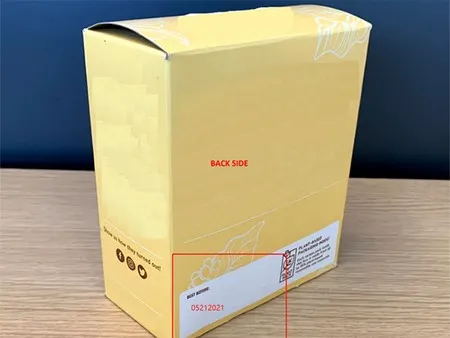

Box Labeling Samples
Technical Specifications
- Model: YX-PL520A
- Labeling Speed: 20-200pcs per minute (depending on product thickness and label length)
- Product Height: 30-200mm
- Product Thickness: 20-200mm
- Label Height: 15-110mm
- Label Length: 25-300mm
- Inner Diameter of Label Roll: 76mm
- Outer Diameter of Label Roll: 350mm
- Labeling Accuracy: ±0.8mm
- Power Supply: 220V 50/60HZ 0.75kW
- Air Consumption (for Printer): 5kg/cm² (when equipped with printer)
- Machine Dimensions (L×W×H): 1820×900×1600mm
- Machine Weight: 150kg

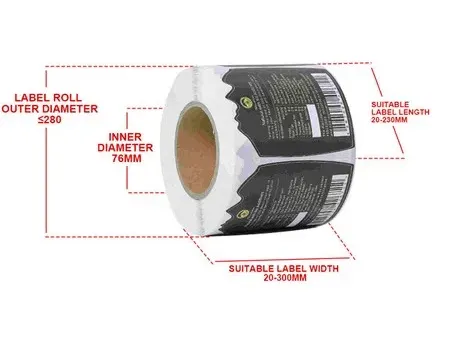

Applicable Label Size

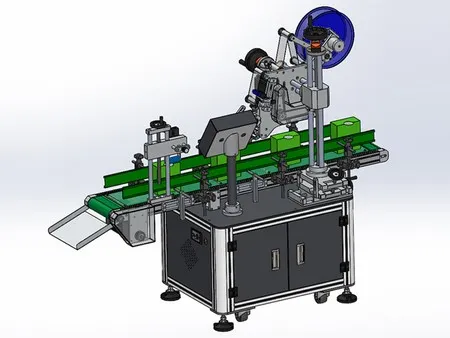

How to Apply Labels Using the Labeling MachineKey Components
Label Adjustment Mechanism
Allows for front, back, left, right, up, and down adjustments, ensuring convenient and quick operation.
Labeling Direction Adjustment Rod
Features a 12-direction adjustment function for faster, more efficient, and simpler operation.
High-Quality PLC Touch Screen
Equipped with a high-quality touch screen that easily switches between Chinese and English.

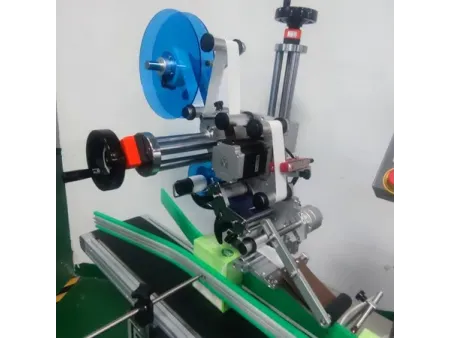

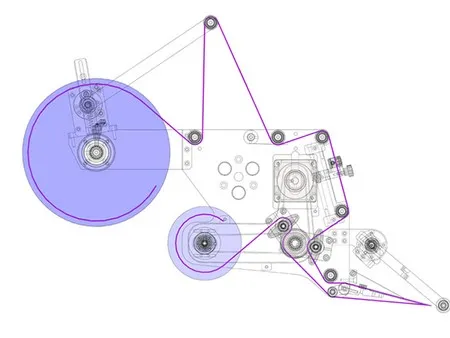

High-Quality Labeling Mechanism
Ensures flat, aesthetically pleasing labeling without bubbles.

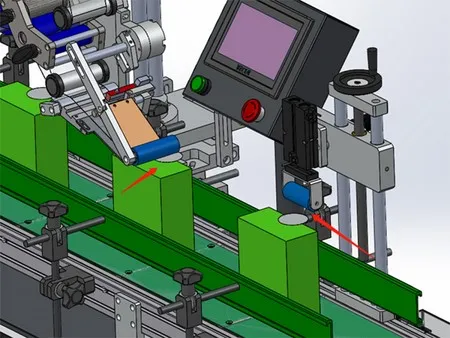

Photoelectric Sensor Design
Accurately detects label stickers to prevent loss or waste.
